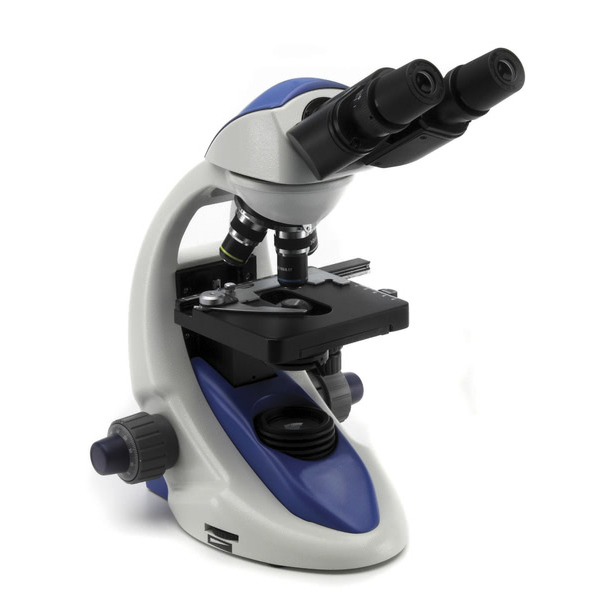

Microscope, Binocular 1000x Manufacturer,Supplier and Exporter in India
Product Code : EL-BLE-10390
This 1000x magnification microscope from is a premium high specification unit for A Level and Higher education applications.
The microscope comes with four achromatic objectives; 4x, 10x, 40x and 100x to cover a wide range of requirements.
Technical Specifications:-
Illumination Light source type: X-LED with white LED; light intensity control using a knob on left side of the frame. LED power 3W, comparable to an halogen bulb 30-35W. Colour temperature: 6300K LED average life time approx. 50.000h.
Voltage: external power supply 100/240Vac, 50/60Hz, output: 7,5 V
Max power required: 7W
Observation Modes: Brightfield
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Head: Binocular observation head, inclined 30° and rotatable 360°.
Diopter adjustment on left eyepieces.
Focusing: Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Stage: Double layer with mechanical sliding stage, size 125x115mm, X-Y movement range 76x30, specimen holder for one slide. Vernier scale on the two axes, accuracy 0,1 mm.
Interpapillary adjustment 48-75 mm.
Eyepieces Wide field eyepieces WF10X/18 with field number 18.
Objectives: Achromatic objectives with mechanical tube lenght 160 mm, made by following objectives:
-) Achromatic DIN 4X, A.N. 0.10, W.D. 18 mm
-) Achromatic DIN 10X, A.N. 0.25, W.D. 7 mm
-) Achromatic DIN 40X, A.N. 0.65, W.D. 0,53 mm
-) Achromatic DIN 100X, A.N. 1,25, W.D. 0,13 mm (oil immersion)
All objectives are treated with an anti-fungus treatment.
Condenser: Abbe condenser, N.A. 1,25 precentered
Dimensions: HEIGHT: 370 mm
WIDTH: 235 mm
DEPTH: 290 mm
WEIGHT: 6,5 kg
Accessories Instruction manual and dust cover included
